SCCM PXE Boot TFTP Issue
My SCCM PXE Boot environment was working fine a few months ago, and but it broke and showing this when I boot up any machines:
Client Mac Addr: xxx GUID: xxx Client IP: xxx MASK: xxx DHCP IP: xxx Gateway IP: xxx TFTP… PXE-M0F: Exiting Intel Boot Agent.
So the client can get an IP. that’s a good sign.
Then I checked SMSPXE.log on the DP server..There are some error messages, and I followed those, and it got me into wrong direction. ( Removing and Re-installing PXE component didn’t help at all)
Later I enabled detailed logging with WDS Service:
https://2pintsoftware.com/enabling-wds-debug-logging/

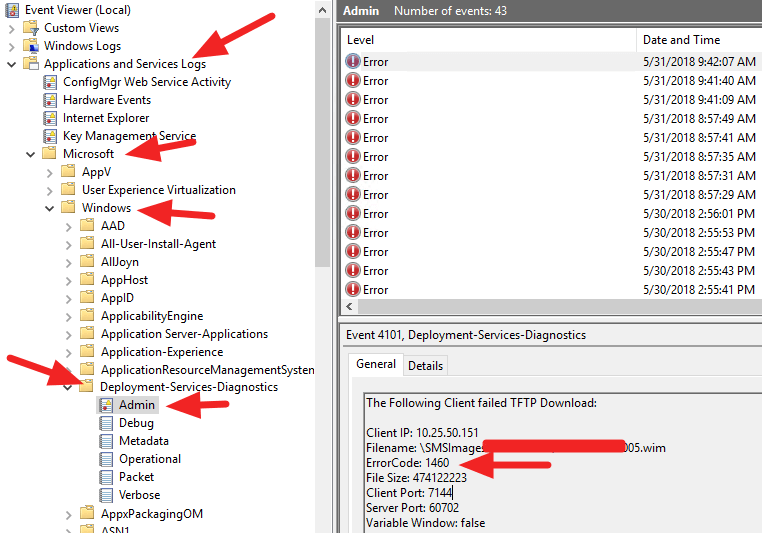

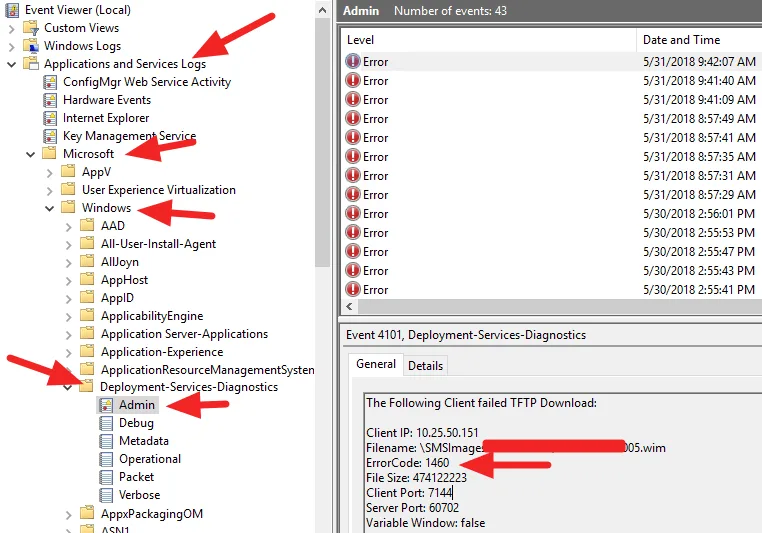

And found out this error message:
So it looks like the client having issues downloading the boot image via TFTP…
then I checked if the WDS server is listening on TFTP 67/68 port…
NETSTAT -an|more
I couldn’t found 67/68 port… So what is wrong with WDS ?

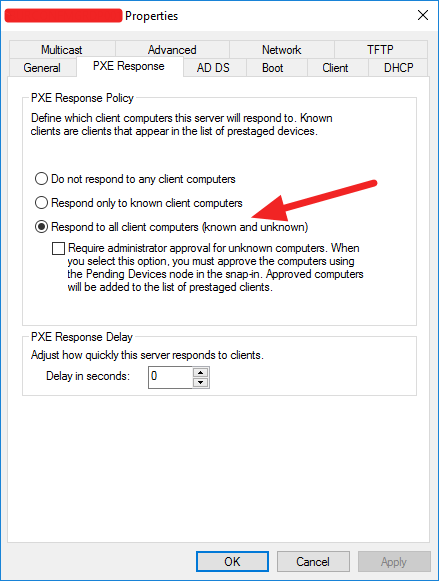

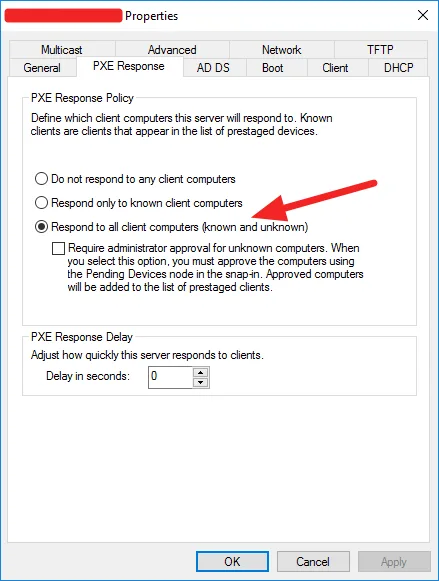

Finally…out of curiosity, I clicked this setting from “Windows Deployment Services”, and wola! it worked!
